How do I open this RJ45 wall jack?

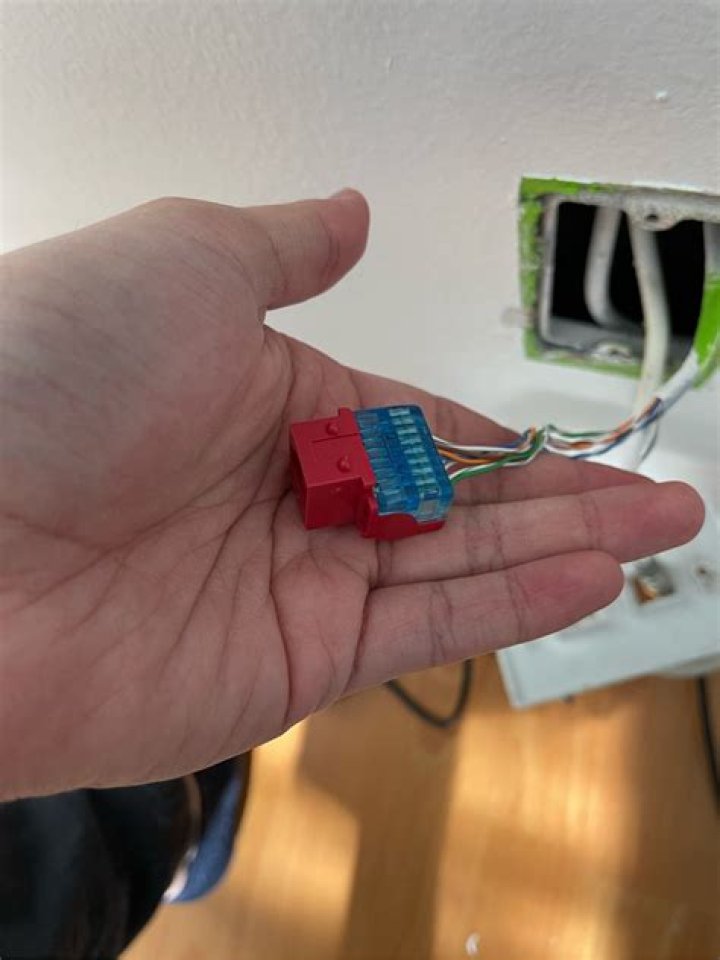

Hi I am try to see if the cables in this RJ45 wall jack are put in correctly but I can’t seem to figure out how to open it. Does any know if this can be opened or does it have to be broken?

4

1 Answer

The translucent cover should release with a thin screwdriver blade or similar. It may pivot at the edge closest to the opening.

Let's hope that you aren't trying to get maximum speed from that CAT-x cable. It's not properly terminated based on the length of the un-twisted segments. As it's internal house wiring, you'll probably be okay.
