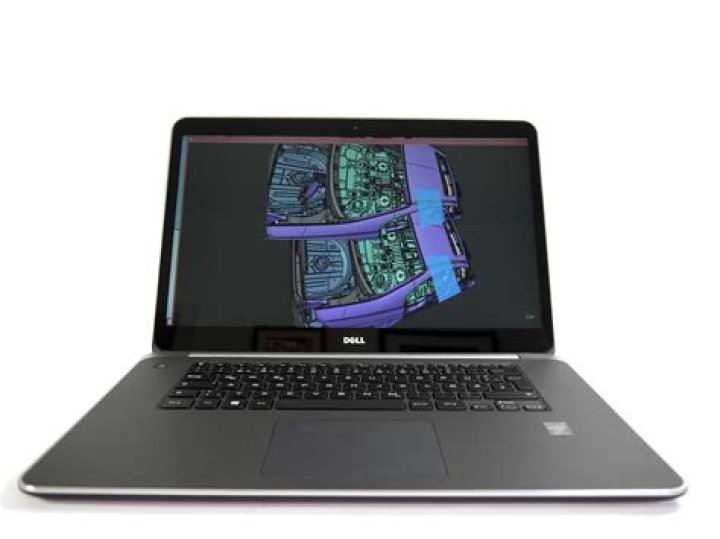

Dell M3800 with Nvidia Driver and External Monitor

I have problems with my notebook DELL Precision M3800 with NVIDIA Quadro K1100 and Intel. I need to use the proprietary driver nvidia (I tested the 331 that 349) with my external monitor.

My external monitor (DELL) has a resolution of 1920*1200, I connect via DVI-miniDP adapt but my system at each session view this error: could not set the configuration for CRTC 64.

Setting: Notebook Resolution: 1920*1080 Ext Monitor: 1920*1200

antodc@gandalf:~$ xrandr
Screen 0: minimum 8 x 8, current 3840 x 1200, maximum 16384 x 16384
eDP1 connected 1920x1080+0+0 346mm x 194mm 3840x2160 60.0 + 48.0 2048x1536 60.0 1920x1440 60.0 1856x1392 60.0 1792x1344 60.0 1920x1200 60.0 1920x1080 59.9* 1600x1200 60.0 1680x1050 60.0 59.9 1600x1024 60.2 1400x1050 60.0 1280x1024 60.0 1440x900 59.9 1280x960 60.0 1360x768 59.8 60.0 1152x864 60.0 1024x768 60.0 800x600 60.3 56.2 640x480 59.9
VGA1 disconnected
HDMI1 disconnected
DP1 disconnected
HDMI2 connected 1920x1200+1920+0 518mm x 324mm 1920x1200 60.0*+ 1600x1200 60.0 1680x1050 59.9 1280x1024 60.0 1280x960 60.0 1024x768 60.0 800x600 60.3 640x480 60.0 720x400 70.1
VIRTUAL1 disconnected
Section "ServerLayout" Identifier "layout" Screen 0 "nvidia" Inactive "intel"
EndSection
Section "Device" Identifier "intel" Driver "intel" BusID "PCI:0@0:2:0" Option "AccelMethod" "SNA"
EndSection
Section "Screen" Identifier "intel" Device "intel"
EndSection
Section "Device" Identifier "nvidia" Driver "nvidia" BusID "PCI:2@0:0:0" Option "ConstrainCursor" "off"
EndSection
Section "Screen" Identifier "nvidia" Device "nvidia" Option "AllowEmptyInitialConfiguration" "on" Option "IgnoreDisplayDevices" "CRT"
EndSection

I am trying in every way but I can not make them work. Do you have any idea to suggest?

2 Answers

you can try this:

xrandr -s 1920x1200
xrandr --output HDMI2 --auto --left-of eDP1

the first command set your main screen to the resolution 1920x1200, and the second command let your external monitor have the same resolution with your main screen. Alternatively, you can use --same-as or --right-of options

1

This sounds like you have broken adapter to me.

I use this laptop with an external 4k screen which i have connected via hdmi and display port.

It works out of the box.
